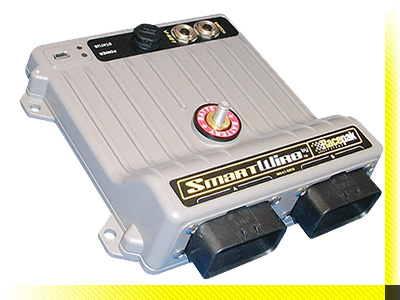

Output Capacity: 125 Amps Current Consumption: 180 mA typical operation (<1 mA in shutdown mode) Min/Max Power Supply: 8-20 Volts Operating Power Supply: 12-16 volt automotive applications Inputs: 12 hardwired direct (voltage triggered (>2.7V) or ground triggered (<2.5V) Outputs: 30 (8 outputs @ 20 Amps, 22 outputs @ 10Amps) Response: 3.0 milliseconds max Programming: USB (or via V-Net when used with a V-Net data recorder) Dimensions: Length 6.5” (16.51 cm), Width 5.5” (13.97 cm), Height 2.0” (5.08 cm) Weight: 25.8 ounces (731.4 grams) Note: All current ratings are for 12 volt operation. For 16 volt systems you must subtract 25 percent.
